Product Description
1. Laser tattoo removal, Pigment deposit dispelling, skin rejuvenation
2. Electro-optic Q-switch ND yag laser
3. It is widely used in clinic, beauty salon, hospital and some recovery institutes.

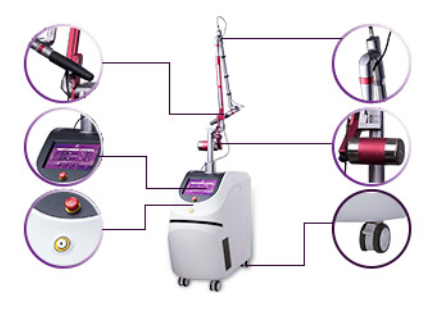

Machine Details
1. The excellent 7 articular optical-arm is imported from Korea. It has big & stable output energy.
2. High Definition Display Design: more enjoy the visual interface
3. Stainless Steel Laser Arm Joint: rotate 360 degrees
4. The hammer on the laser arm can adjust the torsion flexibly
5. Red pause switch: facilitates your urgency; Key switch: prevent any person free to open the device
6. Wheels : 4 pieces universalwheels . noiseless and flexible when move.
PRODUCT PARAMENTERS
Laser type | Q-swith ND:YAG Laser |
Wavelength | 1064nm/532nm |
Spot diameter | 2-10mm,with adjustable treatment probes |
Pulse width | 2-6ns@Q-swith Mode:300us@Quasi-Long pulse |
Frequency | 1-10HZ |
Cooling system | Closeed-off water circulation Inside+air cooling |
Voltage | 220V/110V |
Display | 10 inch color touch LCD screen |
Power | 1500W |
Single pulse energy | 1064nm: 800mj; 532nm: 400mj |
Double pulse energy | 1064nm: 1600mj; 532nm: 500mj |
Quasi-long pulse energy | 1064nm-3J |
Machine size | 38x88x185cm |
Gross weight | 115kgs |
WHY CHOOSE US?

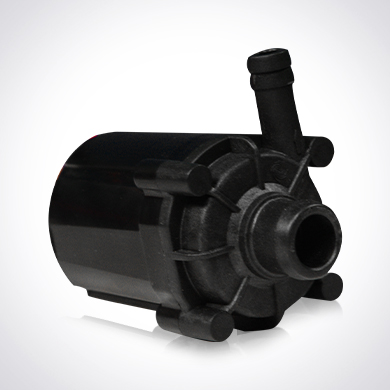

Germany Imported Water Pump
No noise,provide a quiet and comfortable environment for patients;
Larger water flow for better cooling,prolong laser and machine life.

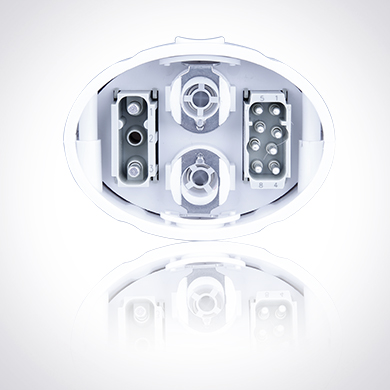

Connector
Connector practical and elegant;
USA CPC Water Connector & Germany Harting Electronic Connector;
No leakage of water and electricity,safe and reliable.

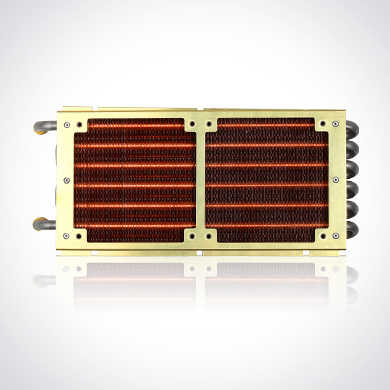

USA Radiator
Imported 316L stainless steel,better cooling, longer lifespan.
Alarm Of Water Flow
If no water inside or few water inside machine,it will alarm automatically-around alarm and stop working immediately.

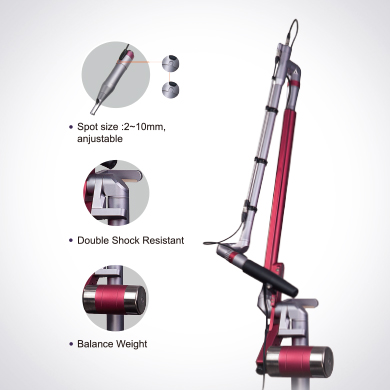

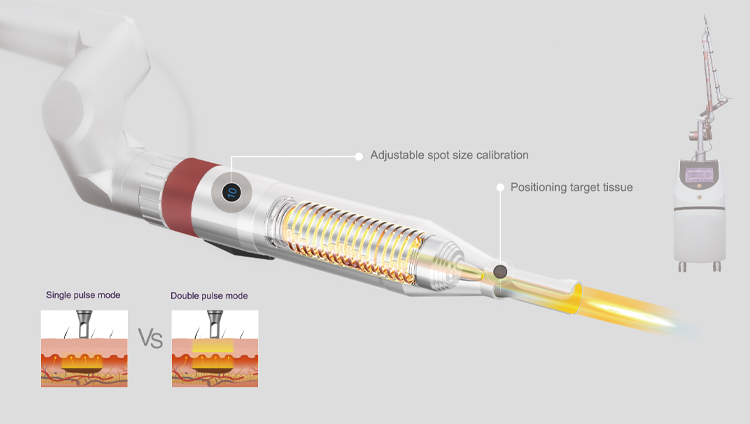

Korean Laser Arm
Stable energy output,not polarized,safe;
Spot size:2~10mm,adjustable;
Double shock resistant;
Balance weight.

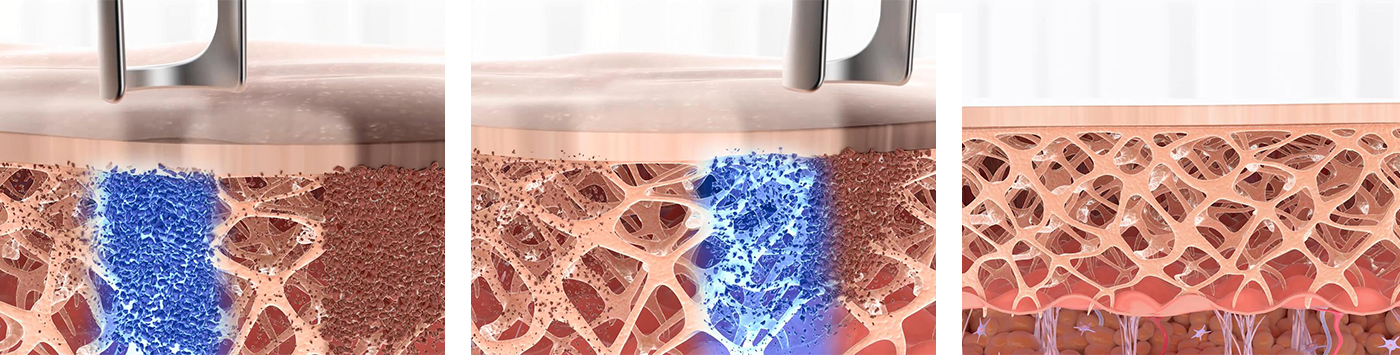

THEORY
Nd Yag Laser equipment adopts Q switched mode, which makes use of the instantaneous emitted laser to break the pigment in ill structure.
That's the laser instantaneous emit theory: centralized high energy emit suddenly, which makes laser of settled wave band instantaneous penetreate through cuticle to the ill structure in 6ns wavelength, and break the relevant pigments(in skin-deep cutticle)fly off the body immediately, and other pigments(deep structure)break down then become the tiny granule can be licked up by the cell, digested and egest from the lymph cell. Then the pigments in ill structure lighten to disappear. Moreover, the laser do not damage the around normal skin.
FUNCTION
Tattoo on Brow Remove:
Lipline Removal:
Tattoo Removal:
Nevus of Ota Removal:
Skin Rejuvenation and Whitening:
Removing Color Spots:
