IPL + Diode Laser Machine US419

Device Description :

The proposed device, IPL + Diode Laser machine (inclusive of the handpiece used to deliver

pulsed-light energy) is indicated for use in surgical, and aesthetic applications in permanent hair

removal, reduction of benign pigmented lesions and benign vascular lesions，and (inclusive of the

handpiece used to deliver diode laser energy)is intended for hair removal, permanent hair reduction on all skin types (Fitzpatrick skin type I-VI), including tanned skin.

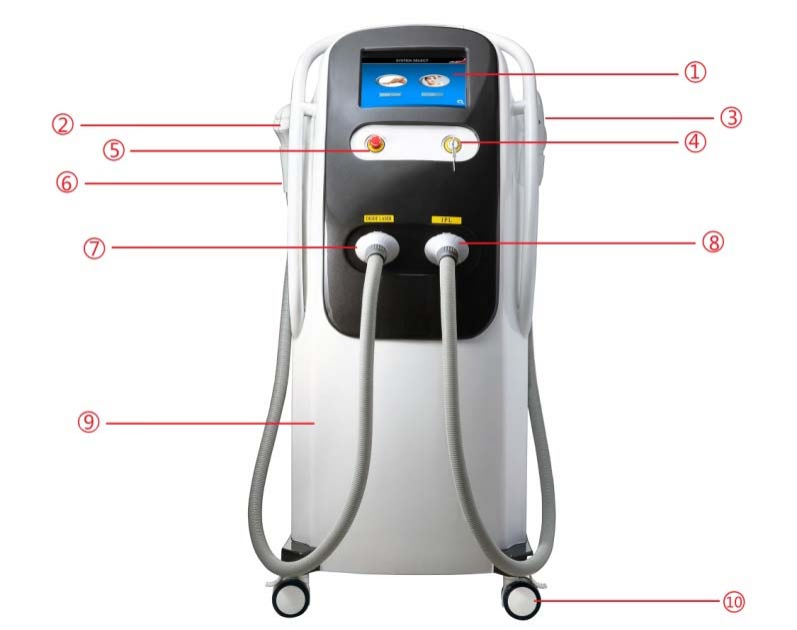

1. Screen/display

2.  Diode laser handle

3.  IPL handle

4. Switch

5.  Emergency bottom

6.  Holder

7.  Diode laser handle socket

8. IPL handle socket

9.  Cover

10. Wheel

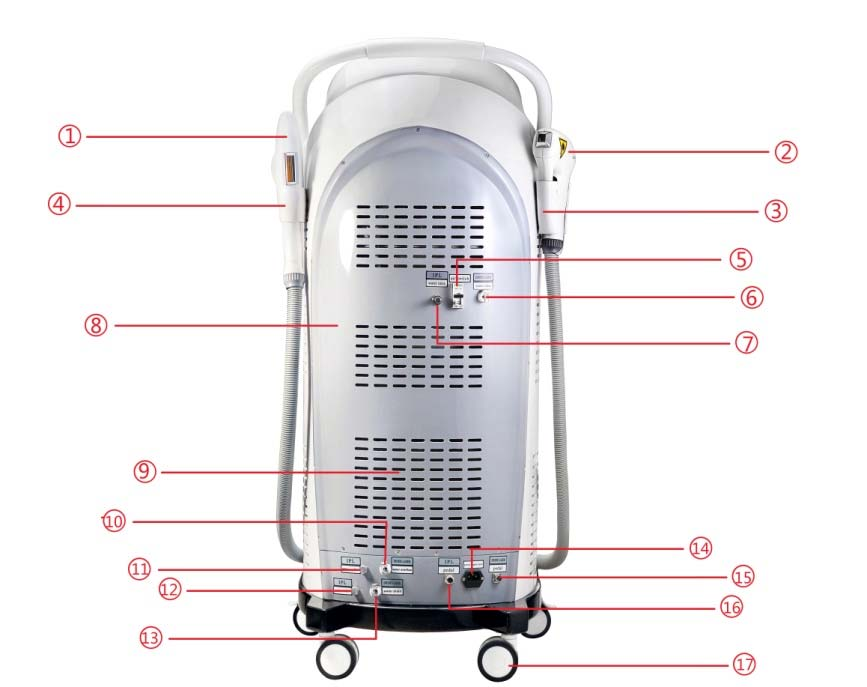

1. IPL handle  2. Diode laser handle

 3. Holder 4. Holder  5. Air switch

6. Diode laser water inlet

 7. IPL water inlet  8. Cover  9. Vents

10. Diode laser water overflow

11. IPL water overflow  12. IPL water drain

13. Diode laser water drain

 14. Joint of power cord

 15. Diode laser joint of pedal

16. IPL joint of pedal  17. Wheel

 IPL are intense pulsed light system which delivers intense pulsed light at a wavelength ranging from  480nm-1200nm. Intense Pulsed Light (IPL) systems work on the principles of selective thermolysis.  That is, causing thermal damage to target chromophores by using light of appropriate wavelength in  pulses that exceeds the chromophores’ thermal relaxation time but sparing normal skin by limiting the  pulse width below the thermal relaxation time for skin.

IPL are different from lasers in that they deliver many wavelengths in each pulse of light instead of

just one wavelength. Generally, IPL enhances penetration without using excessive energy levels and

enables targeting of specific chromophores.

 Diode Laser machine is based on the principles of selective photothermolysis (SPTL): a combination  of the appropriate laser wavelength, pulse duration, and fluence can obtain optimal effect on a  targeted tissue with minimal effect on surrounding tissue.

Wavelengths of 808 nanometers (nm) are widely used in hair removal treatment, it is selectively  absorbed by melanin in the hair shaft, damaging the follicular epithelium, and further causes hair loss,  while the competing chromophores (oxyhemoglobin and water) absorb less energy at these  wavelengths.

The user could power on the device and use the key switch to start the system, and then set the output  parameter, when the setting is done, the user could use the handpiece to aim the area to be treated by  808 nm laser delivering , the laser emitting could be triggered by foot switch controlled by user.

Indication For Use:

The IPL + Diode Laser machine (inclusive of the handpiece used to deliver pulsed-light energy) is  indicated for use in surgical, and aesthetic applications in permanent hair  reduction, reduction of benign pigmented lesions and benign vascular lesions，and (inclusive of the  handpiece used to deliver diode laser energy)is intended for hair removal, permanent hair reduction  on all skin types (Fitzpatrick skin type I-VI), including tanned skin.  Permanent hair reduction is defined as the long-term, stable reduction in the number of hairs  regrowing when measured at 6, 9, and 12 months after the completion of a treatment regime.
